Captcha Hacking(2) - Collecting Data and Analyzing

Captcha Hacking Series

Project Repo

Captcha Hacking(1) - Defining the Problem

Captcha Hacking(2) - Collecting Data and Analyzing

Captcha Hacking(3) - Data Cleaning

Captcha Hacking(4) - Training with KNN Algorithm

Captcha Hacking(5) - Automating to solve the Captcha problem

Topic

• How much Data Collecting
• Data Collecting
• Data Analyzing

How much Data Collecting

How much data should we collect to solve this Captcha problem?

• Since the characters each in the problem look very similar, we don’t need much data
• From the questions, you can see that the number characters are about the same size compared to operation characters
• Possibility of characters: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, +, -, *

Data Collecting

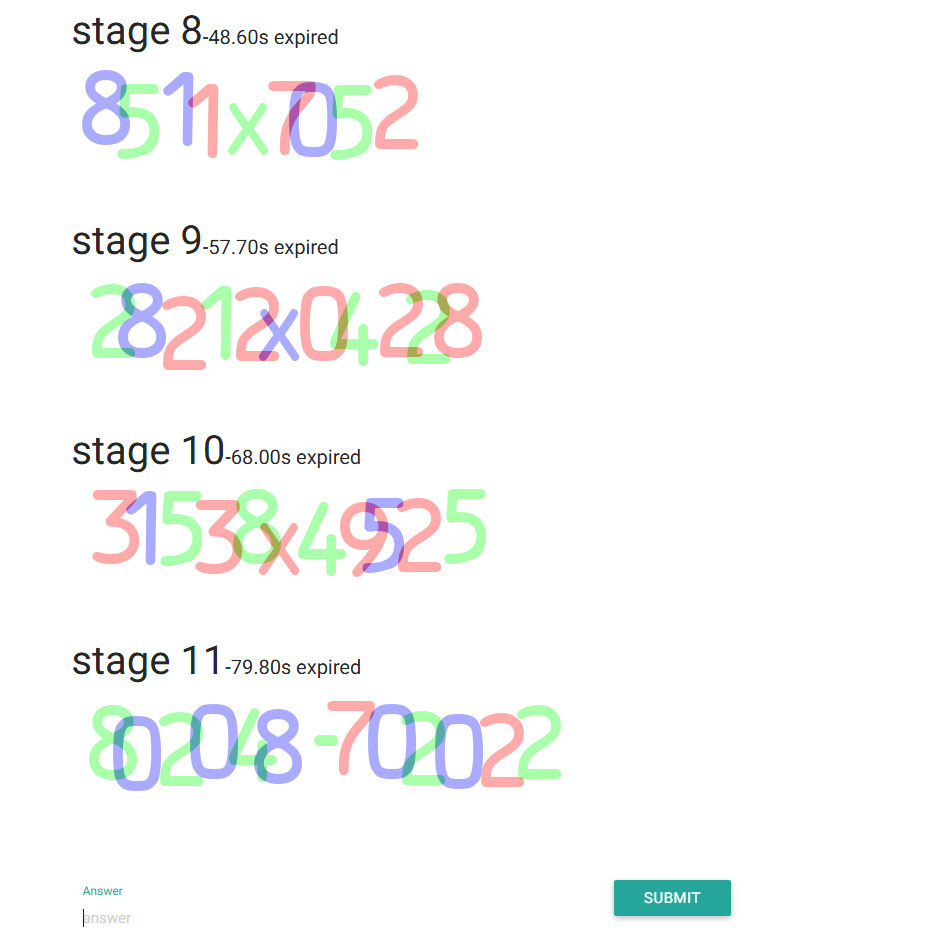

We can simply collect data by solving the problems that are shown in localhost:10000

•
• As talked previously, we can see that the questions get harder and harder to solve
• You can right click the image and save them in a separate file
  • try and get all the possible characters with the images (for myself, I could collect all the characters with 4 image files)

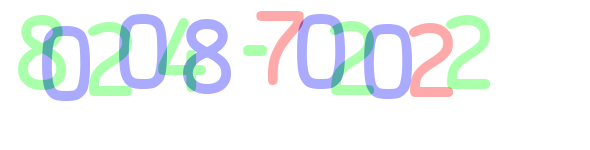

Image1	Image2	Image3	Image4

Data Analyzing

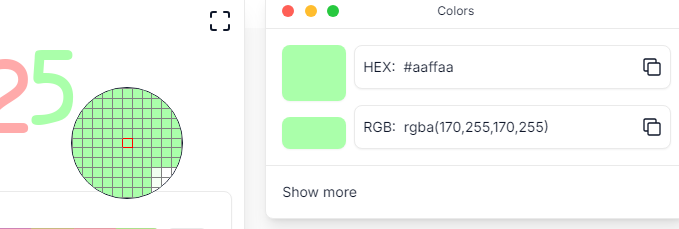

We then analyze the image by getting the colors of each characters using any tool as you can see from image below, one of the color is rgb(170, 255, 170), with hexcode #aaffaa (you can interpret 2 letters each as rgb so ‘aa’ = r ‘ff’ = g, ‘aa’ = b)

Things we found from analyzing image

• Blue: from RGB value, B is always FF
• Green: from RGB value, G is always FF
• Red: from RGB value, R is always FF
• Blue & Green: from RGB value, R is always AA or lower
• Blue & Red: from RGB value, G is always AA or lower
• Green & Red: from RGB value, B is always AA or lower
